Same geography, different outcomes: Europe vs China’s busiest ports

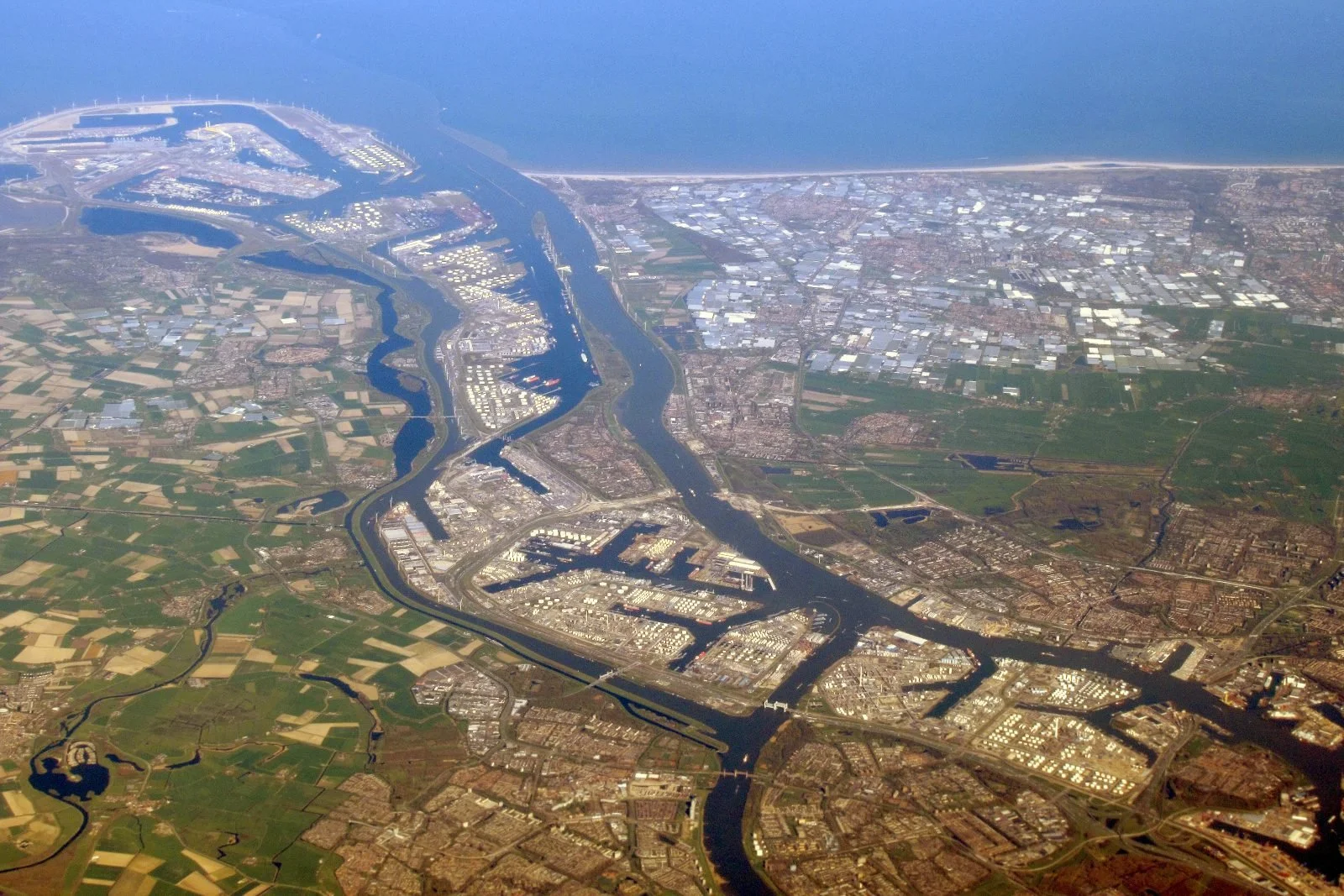

Port of Rotterdam seen from above. Photo by Dkvtig under CC BY-SA 4.0.
This post is part of the “Why here?” infrastructure series, where we explore why critical infrastructure sits where it does.
Europe’s two largest ports, Rotterdam and Antwerp–Bruges, sit less than 100 kilometers apart along the North Sea. For a long time, Rotterdam was the busiest port in the world. Together they form the main maritime gateway into Europe’s industrial core.
Today, we take a closer look at their locations and how they have expanded.
We earlier did the same for China’s busiest ports. As in China, the answer in Europe begins with river systems, but the way these ports evolved over time tells a different story.
1. Macro view: Rivers, Industry, and Access to the sea
Let’s first put the ports on the map using the Sentinel-1 SAR image below. The ports sit at the heart of the brightest network of clusters in Europe: Cities, industry and infrastructure.

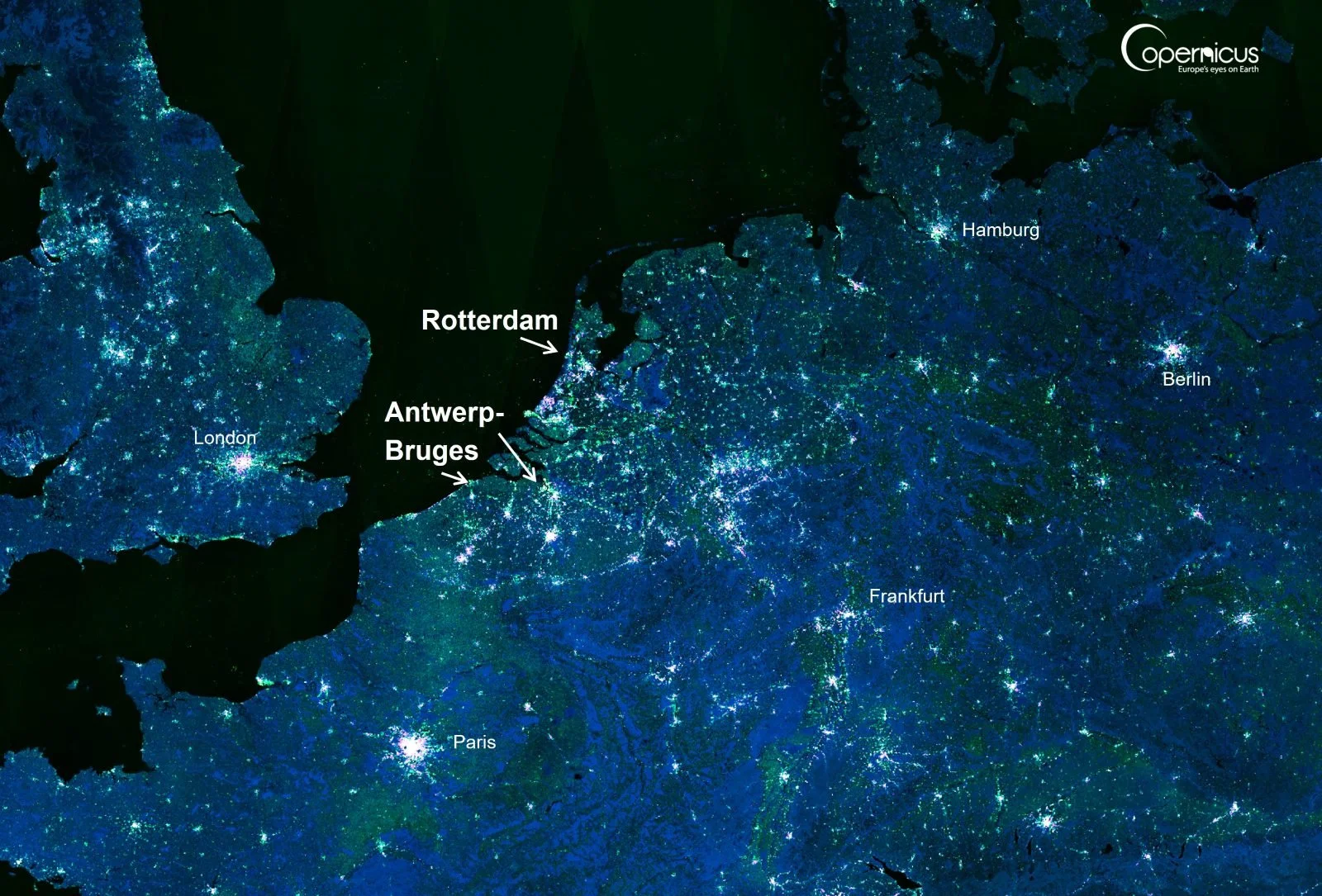

Europe seen with SAR in 2026 (radar satellite). Bright clusters show built-up areas. (Image: Sentinel-1 SAR / Copernicus)
To understand what is behind those clusters, it helps to visualise the main river systems - Rhine, Meuse and Scheldt - which form one of the most efficient inland transport systems in the world.
The Rhine alone connects the North Sea deep into Europe:
The Ruhr industrial basin
Switzerland
Eastern France

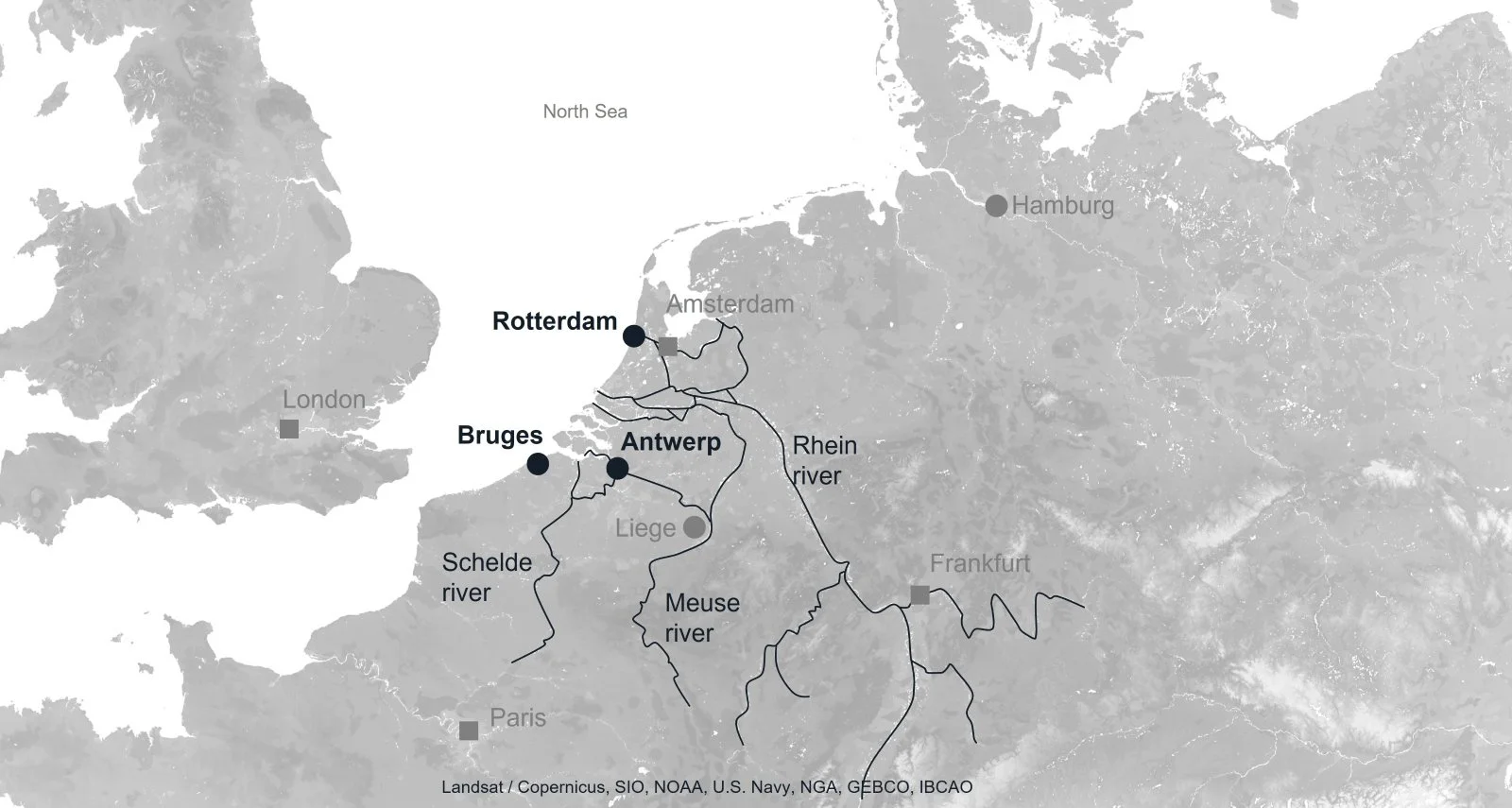

Key river systems around the Rotterdam and Antwerp-Bruges ports, illustrating large inland access to Europe.
Rotterdam and Antwerp sit where those river systems meet the North Sea.
The same rule observed in China is at work here: Global ports sit where large-scale inland transport, industry, and the ocean meet.
Other factors still matter: Natural resources, trade routes, population density and early industrialisation. These influence which of the viable locations ultimately scales the most.
2. Historical expansion story Europe vs. China
At the macro level, Europe and China follow the same rule:
Rivers → Industry → Ports
But at the micro level, the solutions diverge. Where Europe diverges from China is not where ports are located, but how they evolve once they are there. To explain this context, we have to leave the orbit and dabble into history.
First, we must remember that many influential European cities like Antwerp and Rotterdam trace their origins back a thousand years or more. Throughout that time, Europe has relied on maritime transport and seaborne trade. The Hanseatic league, Dutch East India Company and others all operated across the North Sea and beyond.
Second, ships looked very different a thousand years ago. Hell, they looked very different a hundred years ago when containers were still a thing of the future, introduced only in 1956. So Europe faced a constraint: The ports were already there, but the ships kept changing and getting bigger.
In comparison, many of China’s key port cities can also trace their origins back just as far. But whereas Europe developed a continuous, ocean-facing trade system early on, China’s economy was historically anchored in vast inland river networks and a highly integrated internal system. Maritime trade existed, but it was not the dominant backbone in the same way. When China’s container-driven export economy scaled rapidly from the 1980s onwards, it placed entirely new demands on port infrastructure.
With that, we can close the history book and go take a look at the ports.
3. Micro locations: Expanding Inland and modernising the terminals
Rotterdam: Bringing the sea inland
Historically, the Port of Rotterdam was in the heart of the city of Rotterdam, sitting at the Rhine-Meuse delta.
Over hundreds of years, the demand for seaborne trade has increased and pushed the port outward (so much for closing the history book…). You can see in the image below the city of Rotterdam and then a continuous and complex network of port infrastructure meandering seaward. The container terminals are marked, but there are oil, gas, chemicals, bulk and other specialised terminals in the mix.

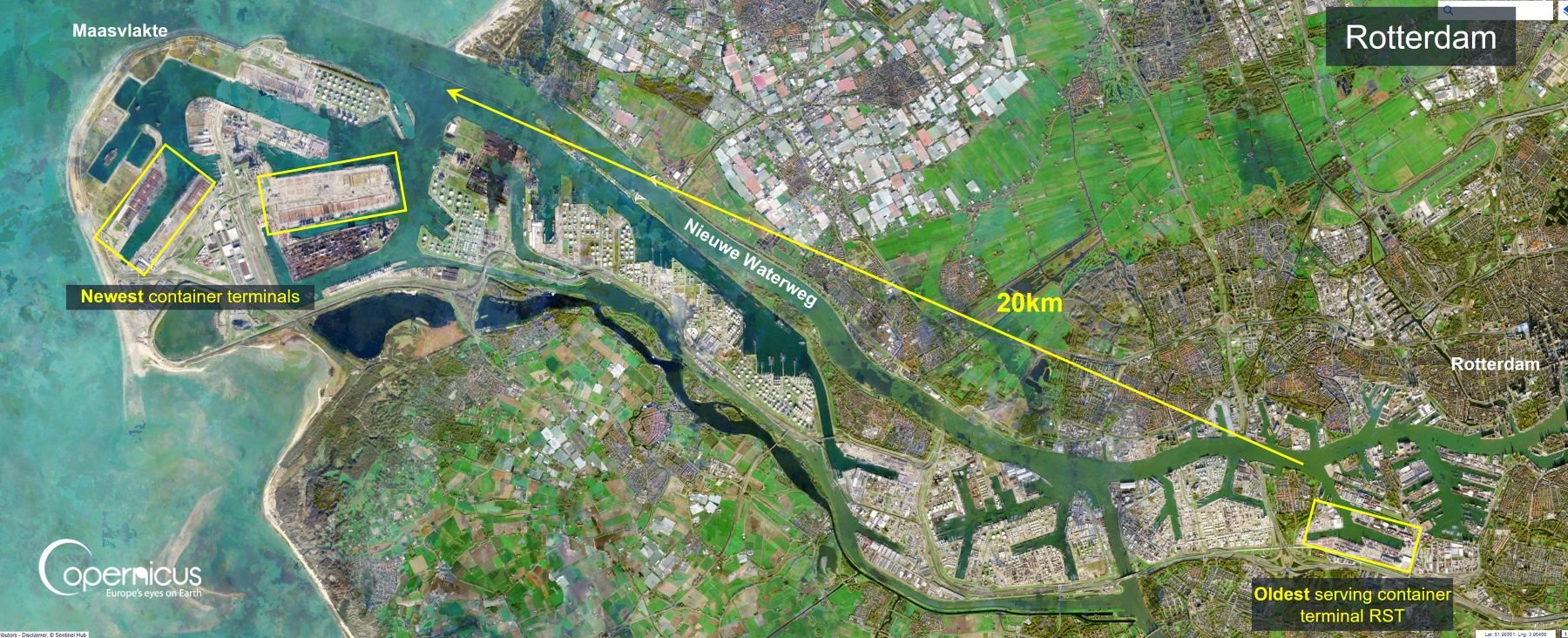

Port of Rotterdam stretching over 20km from the city to the North Sea.
Instead of relocating toward deeper offshore waters like ports in China did, Rotterdam heavily engineered its way forward. The key move was the construction of the Nieuwe Waterweg, opened already in 1872. It is the main channel into the city enabling deep-water access. This allowed Rotterdam to remain inland while accommodating larger vessels.
As trade grew, the port expanded step by step toward the sea with successive terminal zones, culminating in the Maasvlakte, a reclaimed land built into the North Sea where the most modern container terminals are found.
From orbit, this reads as a continuous outward extension. In reality, that is not the whole story. As we mapped the locations of early terminals, we noticed many of the modern terminals stand where earlier versions once operated. Instead of just expansion, terminals are replaced and adapted over time with new technology.
Antwerp: Staying inland, adapting the river
Antwerp sits even further inland than Rotterdam, about 80 km from the sea along the Scheldt river and if possible, looks even more engineered than Rotterdam. See below.

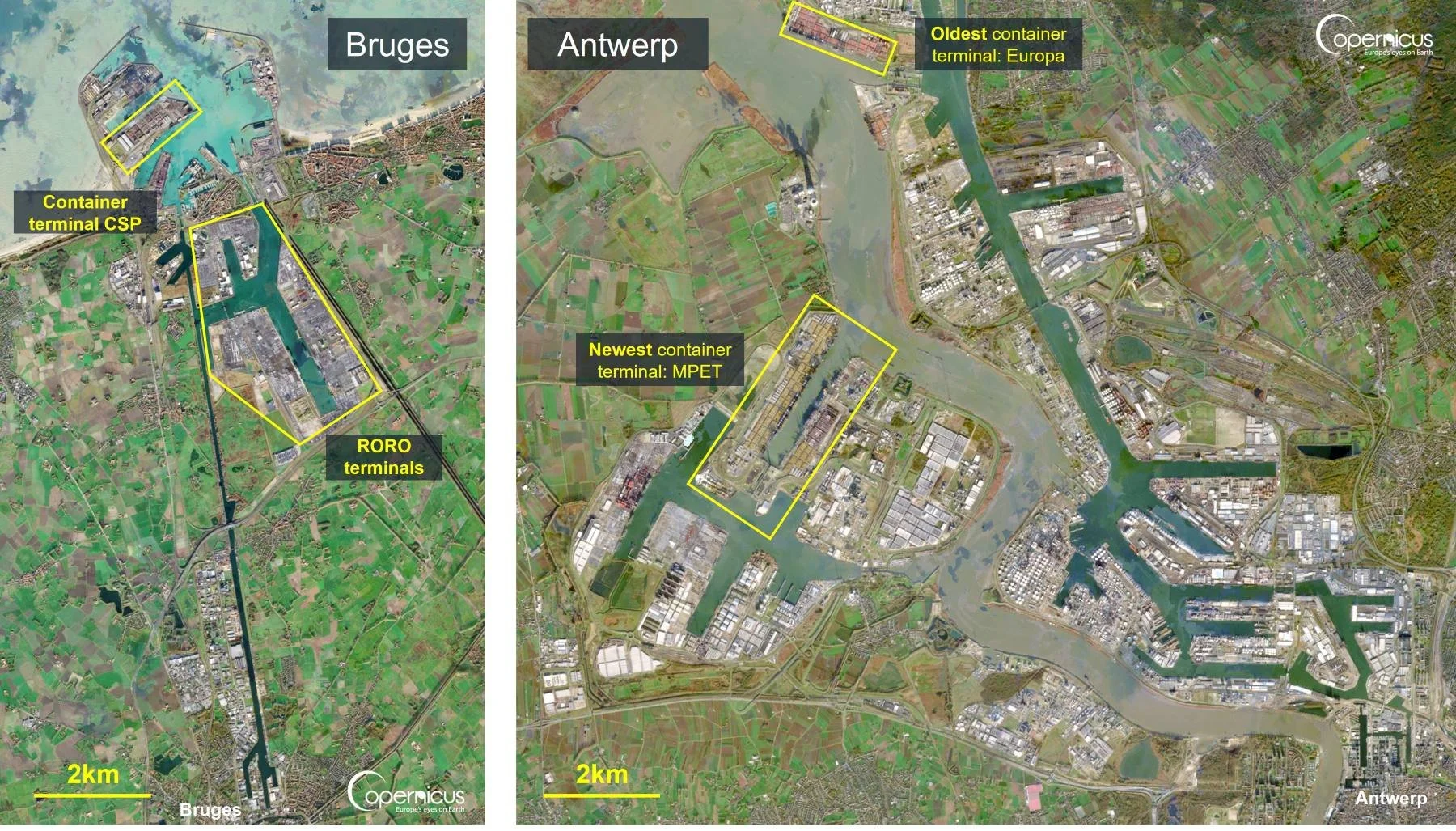

Port of Antwerp-Bruges showing heavily engineered expansion. The Bruges RORO terminal is the world’s largest automotive/RORO terminal.
At first glance, staying so close inland seems suboptimal. But the Scheldt river estuary is wide, deep, and navigable, allowing large vessels to reach far inland.
Instead of moving seaward Antwerp doubled down on its position by:
Constructing large dock basins along the river
Expanding northward in a controlled sequence
Maintaining access through continuous dredging
Modernising old terminals
From orbit, this shows as a tree of geometric docks branching from a single river artery. Much like Rotterdam, Antwerp did not relocate.
Rotterdam has Maasvlakte on the North Sea, Antwerp has Bruges or Zeebrugge on the North Sea coast almost hundred kilometres away. From orbit, we would never know to lump them together, but they are the same operating company and Europe’s second busiest port.
4. Why not in Europe’s other rivers?
At this point, it’s fair to challenge our approach a little bit.
Europe has other major river systems that could support large ports:
Seine: Paris —> Le Havre
Loire: Central France —> Saint-Nazaire
Elbe: Czechia —> Hamburg
And indeed, they do. Hamburg is Europe’s third busiest port. Le Havre ranks among the top, and Saint-Nazaire is a major Atlantic gateway.
So our river-pattern theory holds water well, but not all rivers are equal. From orbit, the Rhine–Meuse–Scheldt network stands out for how far and how continuously it connects inland. It forms the most extensive and integrated waterway system linking the North Sea deep into Europe.
That gets us very close to explaining why Rotterdam and Antwerp dominate, but not all the way. The Ruhr and its historically vast deposits of iron and coal to fuel the fires of industry explain the rest.
Ports like Valencia and Algeciras, Europe’s other top container ports, sit entirely outside major river systems. Their logic is different and requires a different explanation.
Conclusion: Same geography, different evolution
Rotterdam and Antwerp–Bruges sit where Europe’s inland waterways meet the sea. While they have lost their long-held statuses as world’s busiest ports, both remain in the Top 15 and are just as influential globally.
European ports grew inland over centuries, shaping and reshaping the same waterways. Chinese ports scaled from zero to world-leader over just a few decades and often started from scratch, expanding quickly towards open sea.
Orbital analysis explains where the major ports are likely to be. To understand why some become larger than others, we also need to consider how they developed over time.
