The Sahara volcano that defies explanation: Waw an Namus, Libya

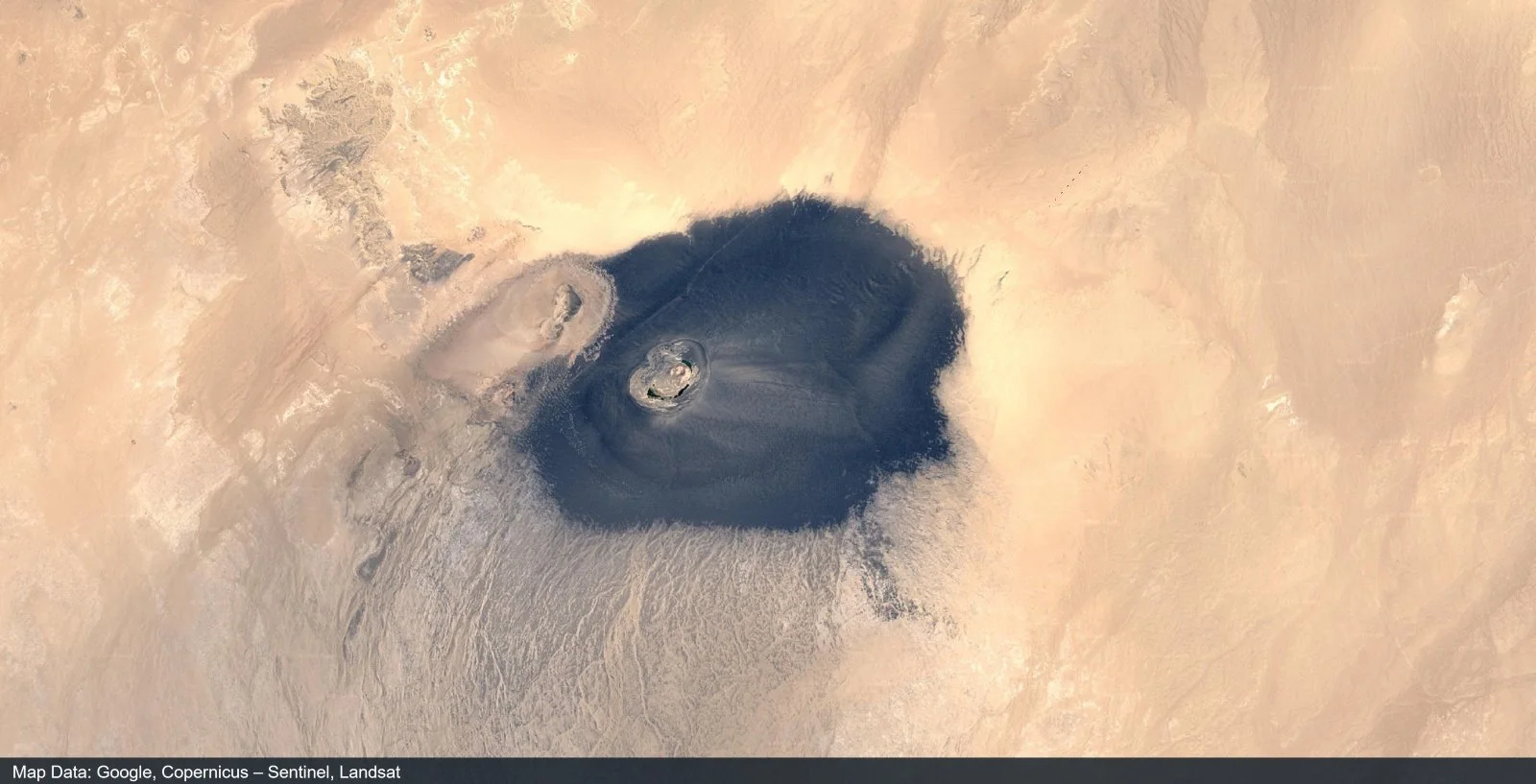

Waw An Namus seen from space in the Libyan desert. The darker areas are ash and basalt.
This post is part of the Edge Case series, where we look at unexpected features that stand out from orbit, but don’t fully explain themselves.
In the middle of the Libyan desert, far from mountain chains or obvious volcanic systems, there is a near-perfect dark circle. We stumbled upon it by accident when studying Harmattan. The black spot looking like burn mark caught our attention. It turned out to be the Waw an Namus volcano.
Today, we try to figure it out from an orbital perspective, mostly because such an unexpected feature really piques our curiosity.
1. What we see
On closer look it is familiar as far as volcanoes go: A roughly 4 km wide volcanic crater, surrounded by a much larger dark field stretching out to ~20 km.
Inside the crater sit several small lakes and vegetation around it, easily illustrated by the false colour image below (vegetation in red). Permanent water in the Sahara alone feels out of place, but indicates the presence of groundwater.

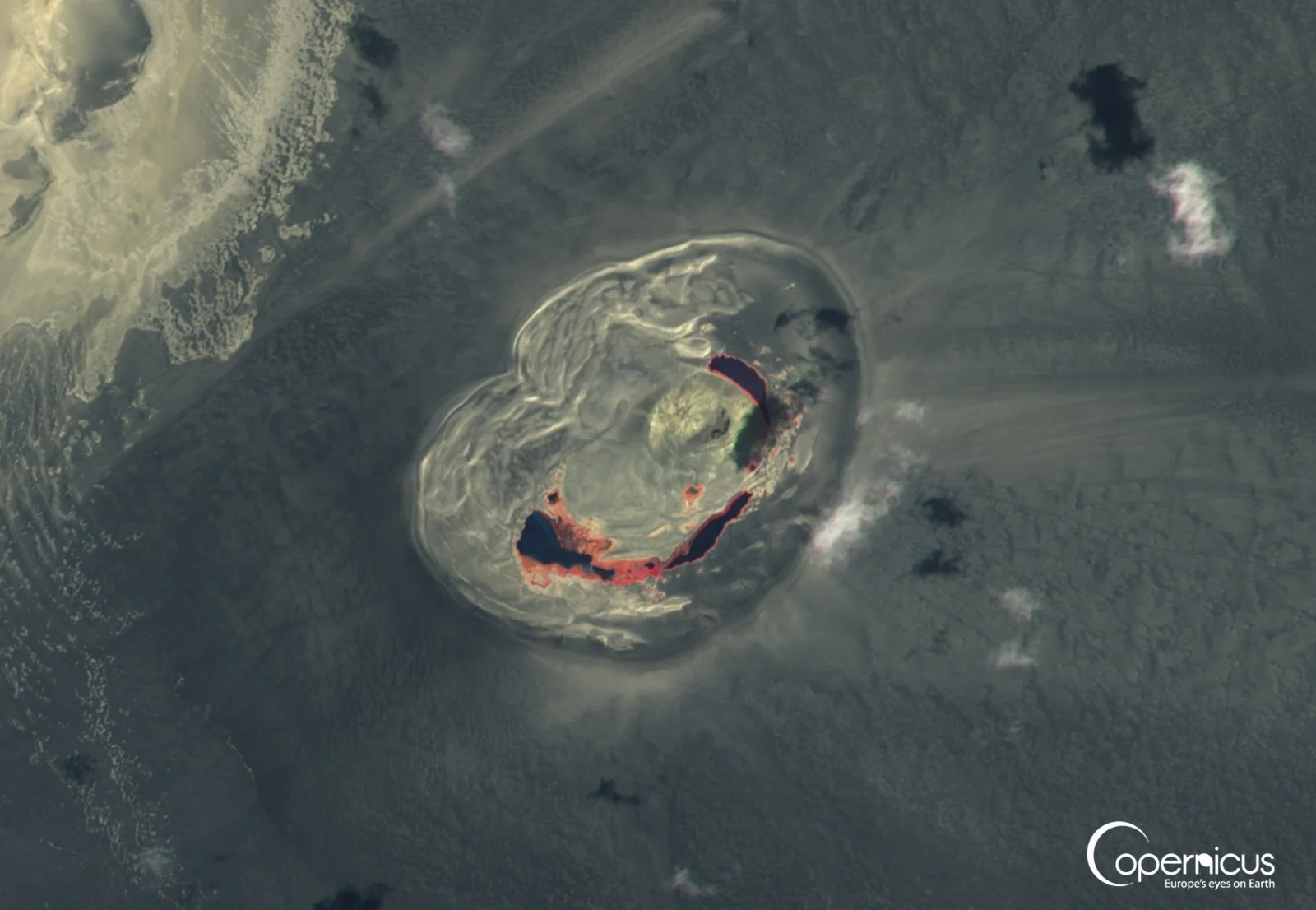

False colour image of the volcano (Sentinel-2 / Copernicus) in March 18th 2026. Red shows vegetation and the dark ares inside the red circles are water.
From orbit, this part is clean: A central volcanic vent with expected symmetric deposits around it. Not a tall one, more like a hole in the ground. These are called maars, volcanic explosion craters formed when magma comes into contact with water, which is a consistent story with the identified (and well-documented) groundwater presence.
Nothing in the above is anomalous yet, but starting to think of the formation is where we start running out of easy explanations.
2. No clear volcanic system
Volcanoes are to be expected near tectonic plate boundaries or above mantle hot spots (e.g. Hawaii). Even without those, the forces required to push magma to the Earth’s surface are gigantic, which typically shows up as volcanic fields or even just a cluster of eruption vents, not a solitary crater. The Sahara desert, however, is far from tectonic plates (see below).

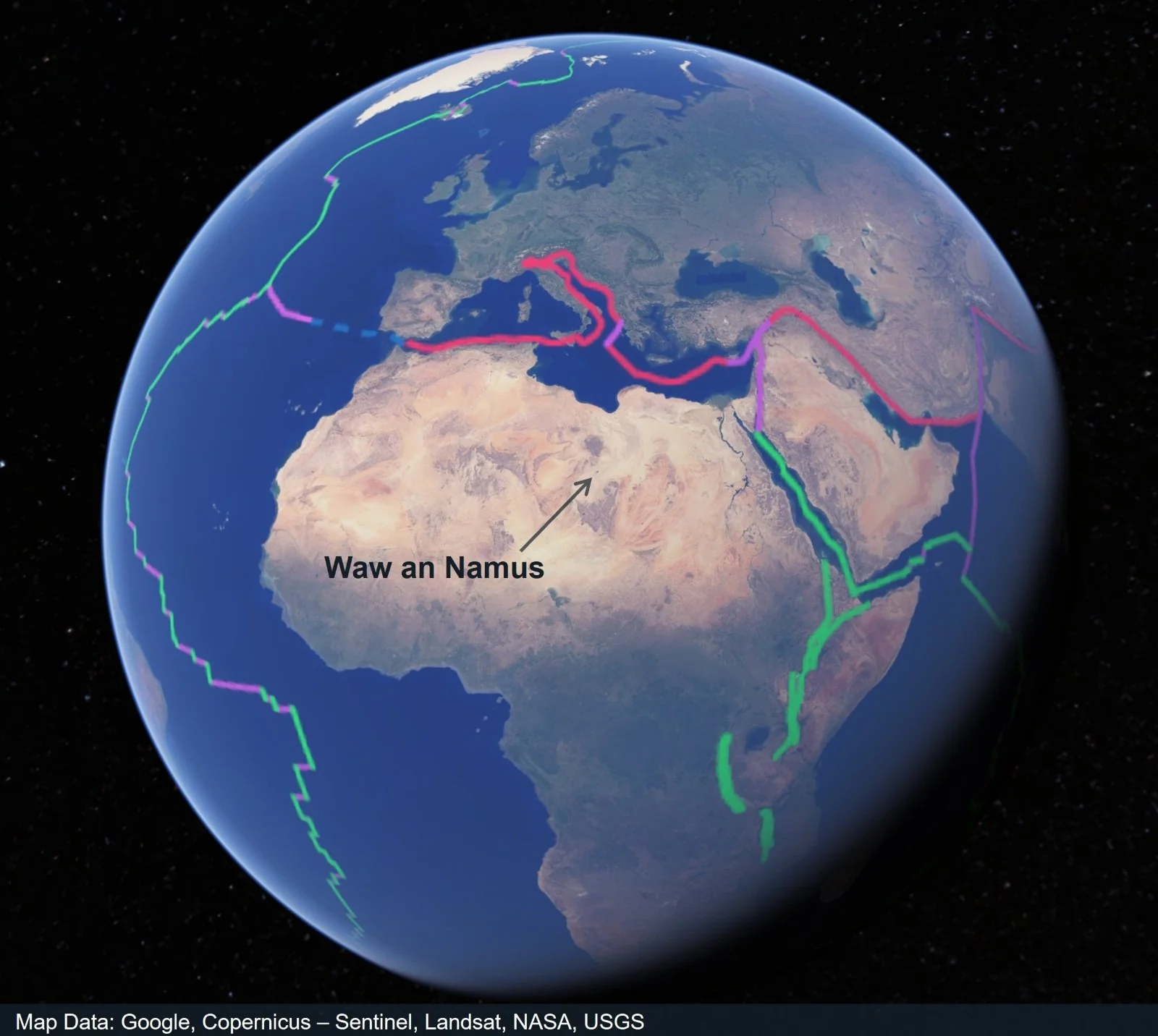

Tectonic plates around Africa. The colours show boundary types: Green = divergent, Red = Convergent, Blue dotted = Diffuse, Purple = Transform. Data via Jordan Bell.
One has to zoom out a lot to find the next volcanic feature, such as the large Al Haruj al Aswad 170km to the North. There are also a few smaller odd dark spots in the desert that we checked out but turned out to be oases and the connecting factor with them is groundwater. This context is marked into the image below.
But there is nothing here to suggest Waw an Namus is part of a wider volcanic structure. Still, without the volcanic fields, even if far away, this would have been even more mysterious.

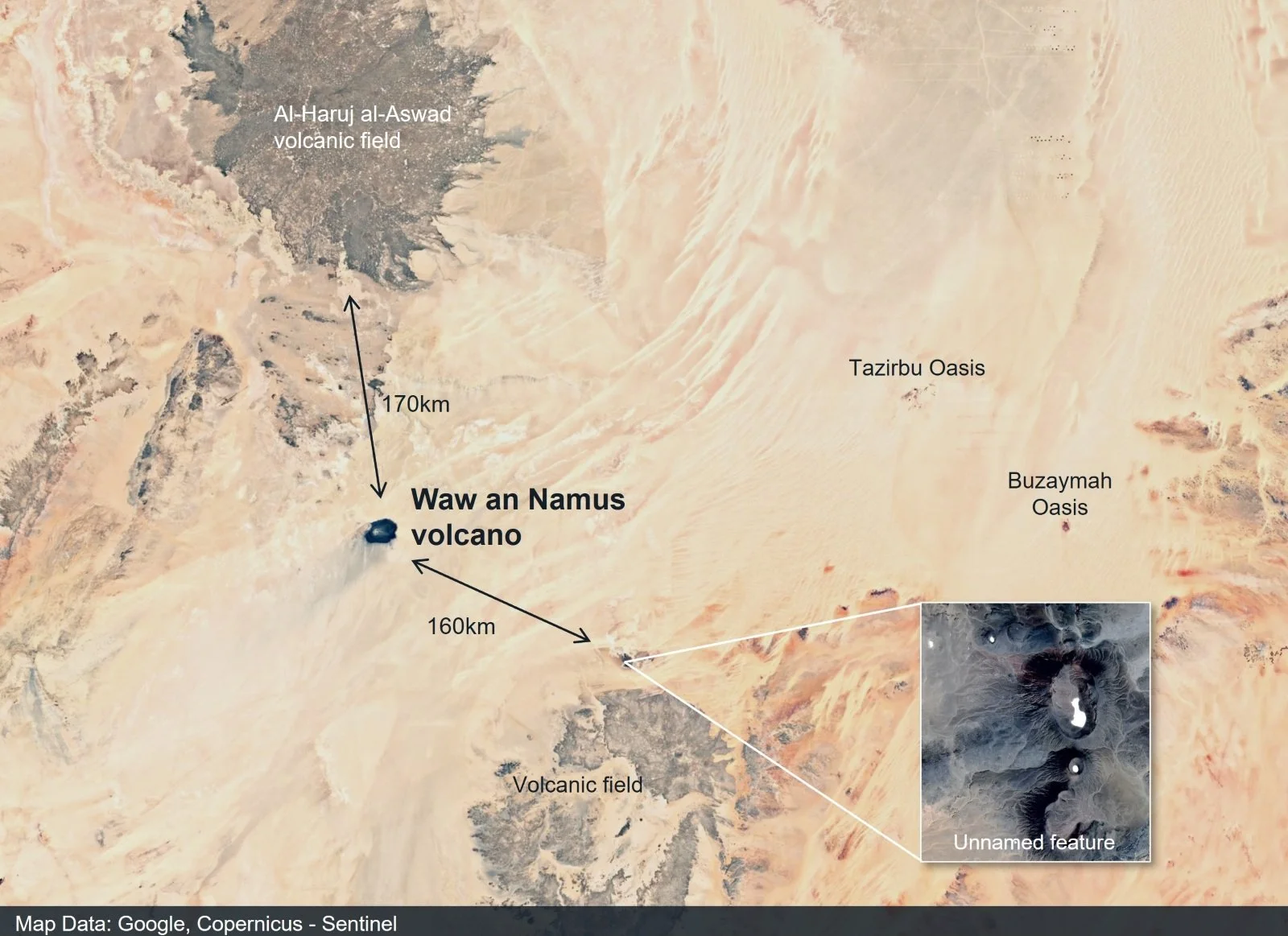

Analysis of volcanic context around Waw an Namus.
Looking at the elevation profile, the volcano sits in a shallow basin spanning hundreds of kilometres (no photo as this is a non-priority angle). From orbit, this hints at a crustal structure that may be slightly thinned or weakened, making it easier for magma to rise. But this basin alone does not explain the isolation. If it did, we should see more vents.
3. Orbital view won’t help us here
The presence of groundwater likely explains why the volcano erupted and created a maar, but it does not explain why magma was coming towards the surface in the first place. Next to nothing from orbit explains why there is a volcano.
We also cannot resolve the water system. The lakes persist, but their recharge mechanism is not visible from orbit. Groundwater pathways, aquifer connections, evaporation balances sit below the surface and outside the reach of satellite imagery.
Even the eruption history is something we don’t dare to guesstimate. Apart from shifting sands in the Sahara, there is minimal erosion, vegetational, animal or human impact. Most larger features are ancient and well-preserved. The freshness of the dark deposits suggests relatively recent activity in geological terms.
The questions remain:
When did it form?
Is this a deep, isolated magma pocket?
A remnant of an ancient, broader volcanic phase now mostly buried?
A localised interaction between tectonics and groundwater that left no wider footprint?
I tried finding answers to the above by other means, but it appears geologists that have conducted field tests seem to be just as non-plussed, despite taking radiological dating measurements and what not.

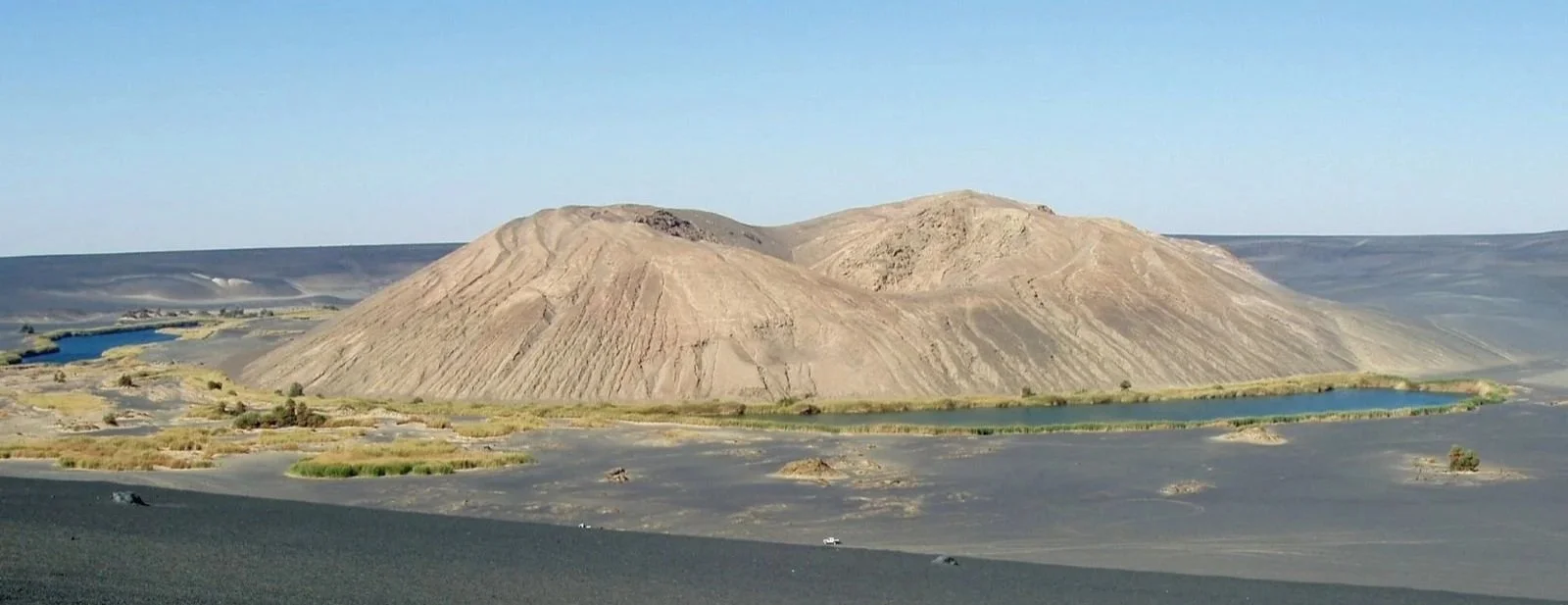

Image of Waw an Namus from the ground. Photo by unknown.
Conclusion: Why this matters to Orbital Vantage
Waw an Namus is a reminder that orbital perspective is powerful, but can quickly reach its limits. For Orbital Vantage, this is useful in two ways.
First, it sharpens our thinking. When something does not fit: This anomaly itself becomes the story. Not everything fits a known pattern, despite humans being wired to try to fit everything into patterns.
Second, it prevents overconfidence. Some features remain open loops, requiring geology and field data. There are still many things on the planet that we don’t yet fully understand.
Perhaps most importantly, sometimes we just want to spend time with interesting features without the pressure of coming up with new insights.
See you,
Orbital Vantage
