Tombolo in Gwadar, Pakistan created by wave refraction
This is part of our Why here? geography series, where we explain how peculiar geographical features formed.
This tombolo in Gwadar, Pakistan is an interesting case that I first noticed years ago browsing Google Earth. It is a near-perfect “handle” connecting the mainland to a hammerhead peninsula. I didn’t know at the time it’s called a tombolo.
Today, we’ll see if the orbital view helps explain its formation.
1. What we see
A picture does the talking here so see below the near-perfectly symmetrical hammerhead and handle.
When looking closer, we can make two geological observations:
First, the hammerhead has clear cliffs and is at higher elevation than the handle
The handle is flat and seems to be sand rather than rock
The above give some hints and in all likelihood the hammerhead as a rocky land has been there for longer than the handle.

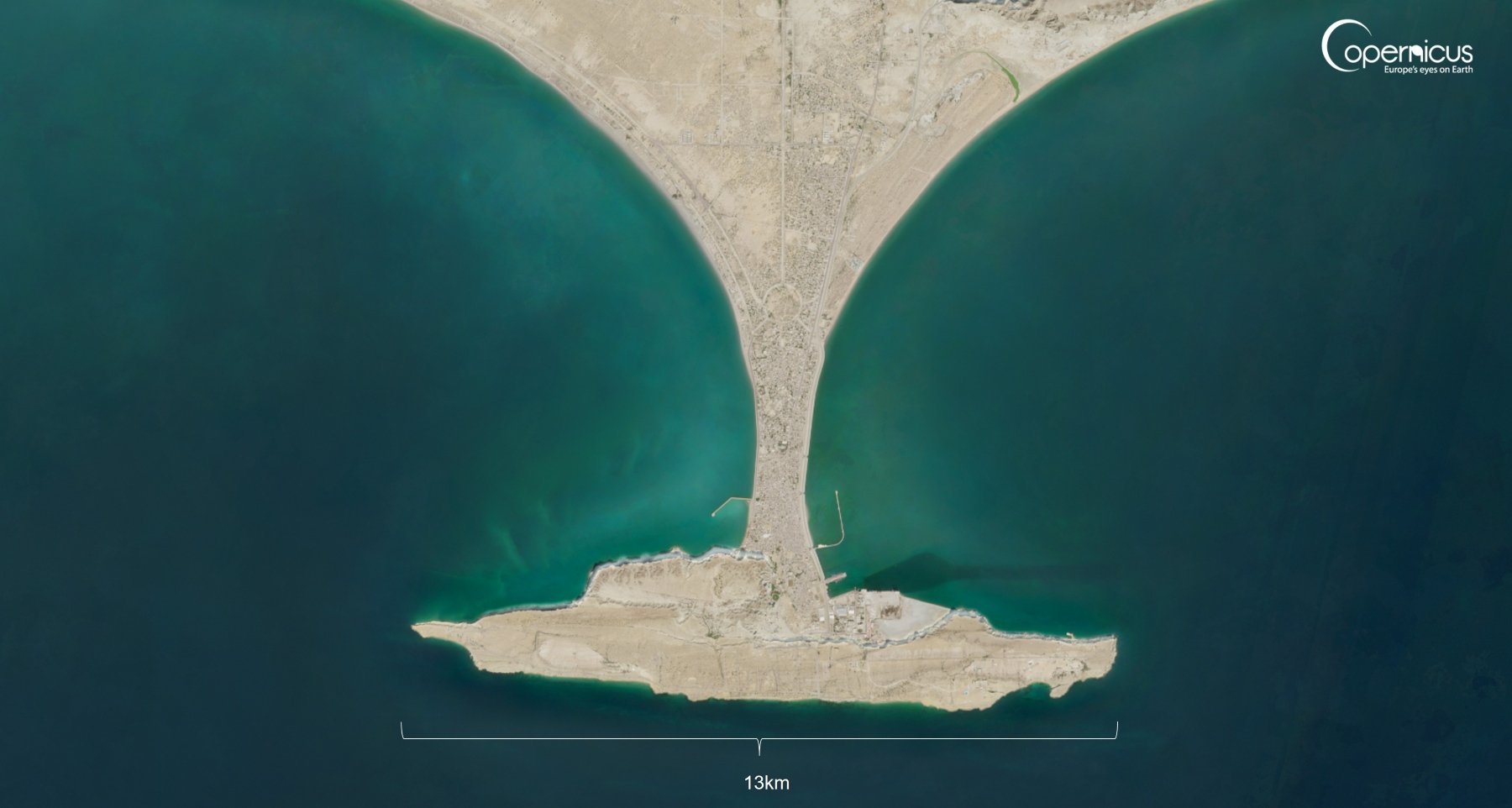

The Gwadar Tombolo in an early 2026 monthly mosaic by Copernicus-Sentinel. As a side-note, see the dredged shipping lane into the harbour visible as darker water.
2. Formation theories
I could just Google this, but the Orbital Vantage goal is to see what satellite imagery alone can reveal.
Today, we don’t need fancy optical bands or radar views but work through visual deduction around the usual geological suspects.
Erosion
This explains many coastal formations, and in this case would mean the sea removed material to carve the connection but this doesn’t work for several reasons:
The hammerhead has rocky cliffs and has been there a long time however. Why would it be less erored? Why would the handle-part be so much softer than the hammerhead? Why would it erode so symmetrically and smoothly? Erosion doesn’t explain the formation, but it does play an important part later.
Tectonics
Could tectonic uplift have created a land bridge? The northern edge of the Arabian plate explains the rocky coasts of Iran and Pakistan so it is at play. But, this tombolo structure is small and isolated for a tectonic feature and runs perpendicular to the tectonic boundary. Also, there is no visible fault or deformation patterns.
This probably explains the rocky headland as part of the rocky coast, but not the sandy connector.
Sediment deposition
For this formation, water (or wind) must work to deposit landmass from one place to another. Let’s pursue this one further. In the image below, we see major turbidity in the water that already hints at this mechanism in play. Also pay attention to the waves moving the sediments.

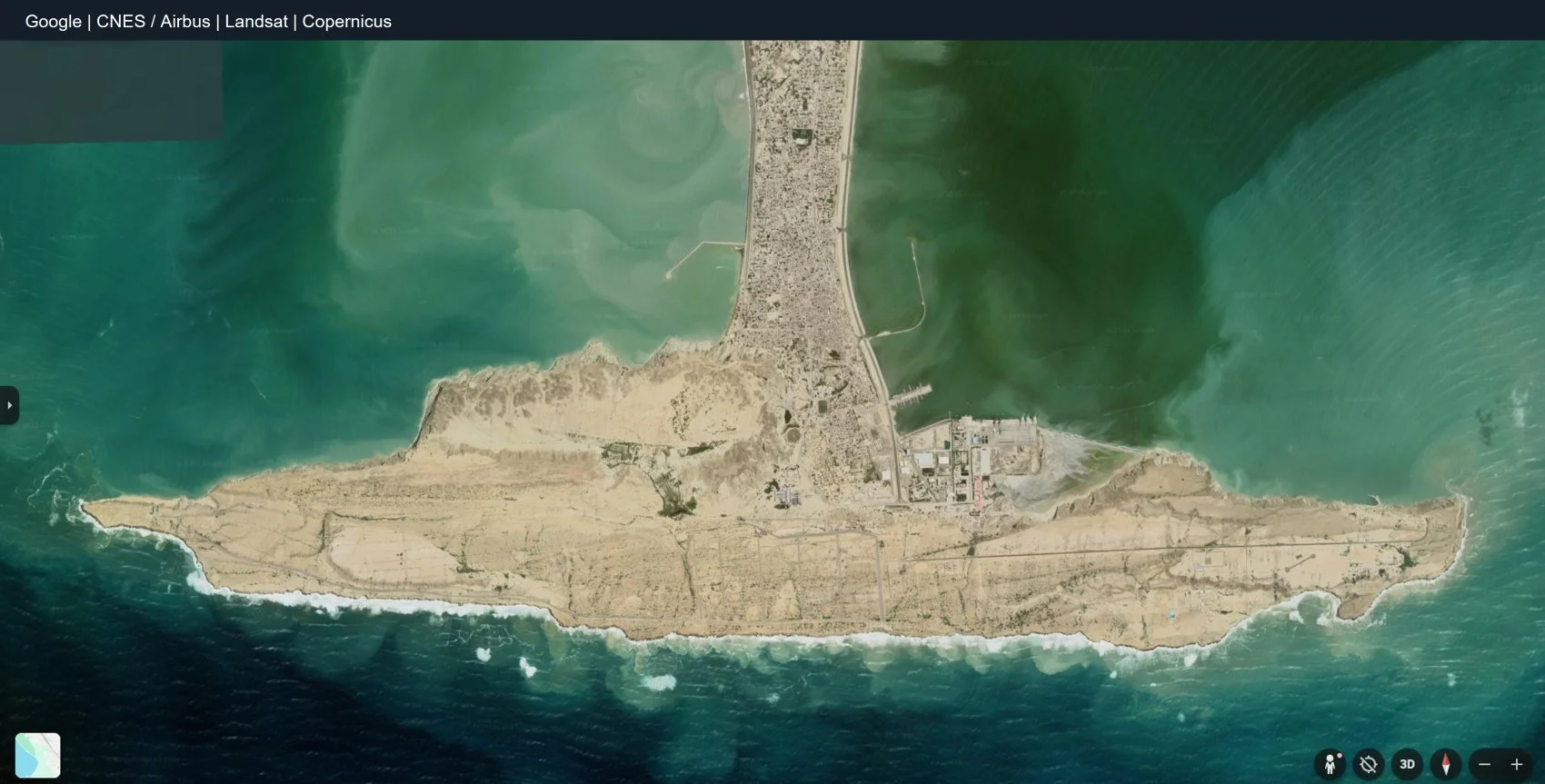

Sediments on the water clearly being released on the southern coast before being pushed around the hammerhead - August 2022.
3. Wind & waves as the explanation
Let us study sediment deposit drivers as the most plausible explanation.
Average wind patterns show a dominant flow from southwest. At first, this was a bit puzzling as wind from the south is blocked by the island.

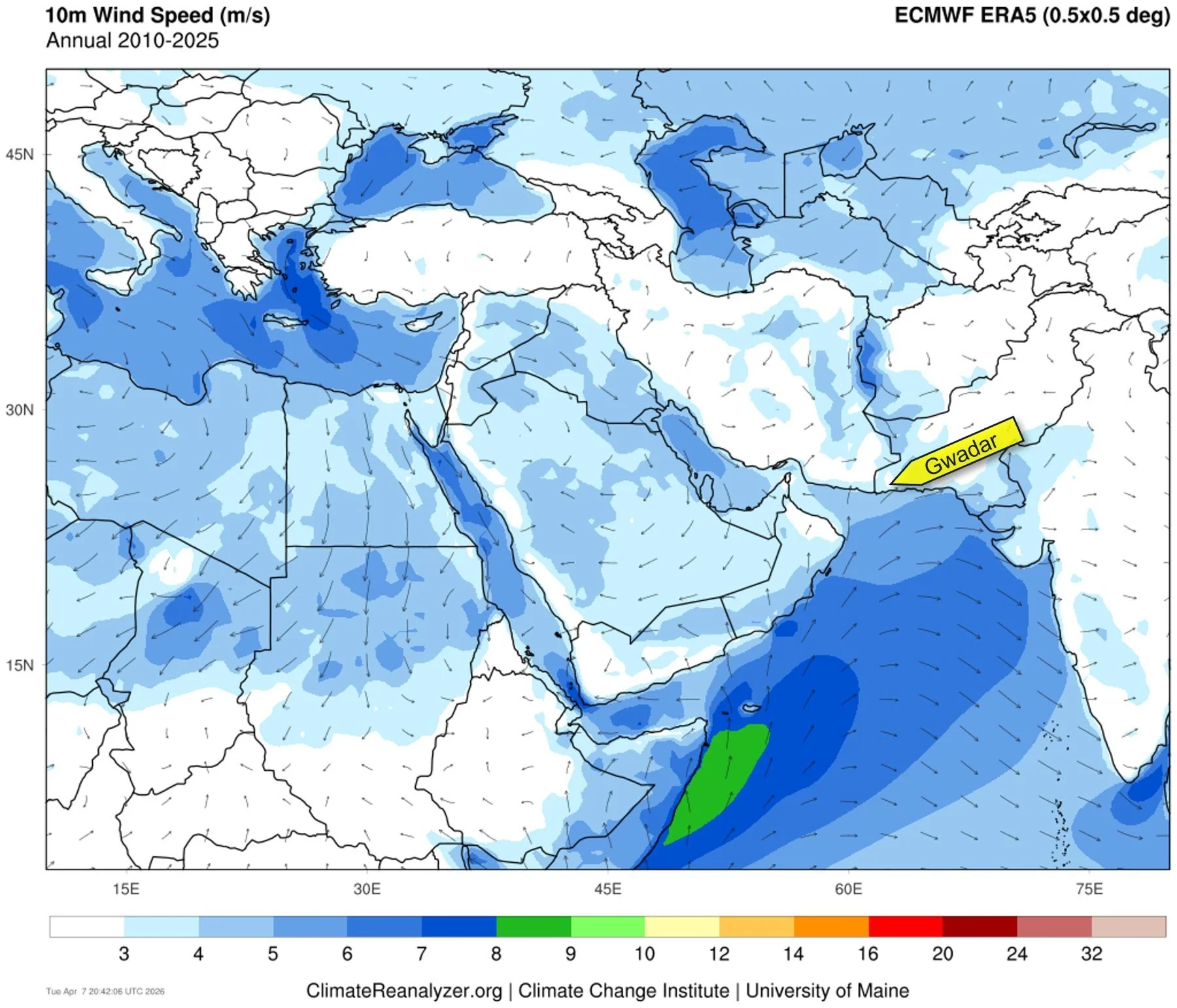

Wind map shows prevailing southwesterly wind.
This wind does a few things. First, it generates a steady stream of wave energy towards the coast and the hammerhead. This works to erode material from the island and the coast in general.
The head-on collision of waves is where things get interesting - the waves refract around the island symmetrically as seen in the image below and facilitate the movement of sediments along with the waves. Browsing orbital imagery, this dynamic is visible in image after image where waves are visible.

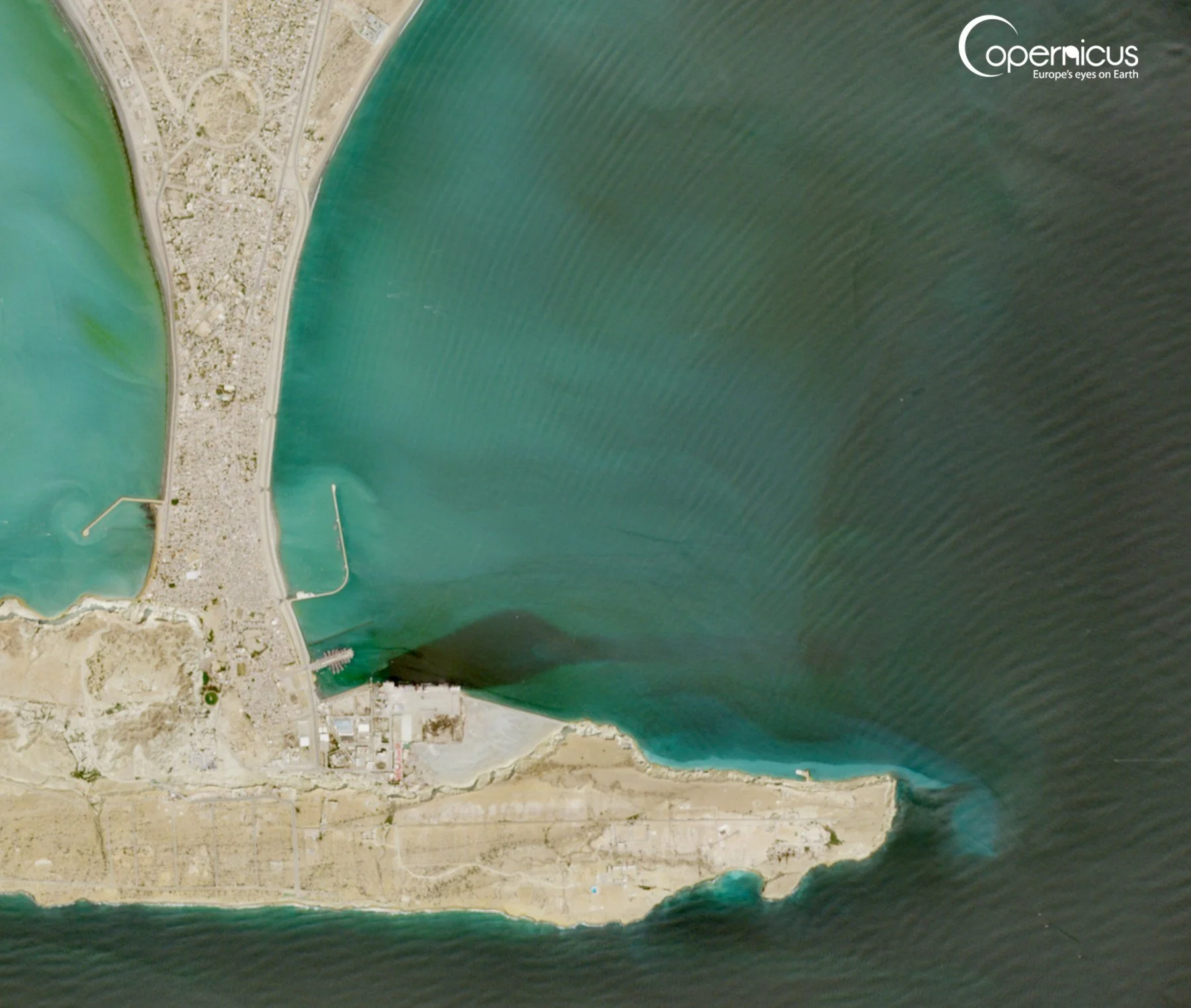

Clean wave refraction clearly visible around the eastern part of the tombola - April 2026. Imagery by Copernicus-Sentinel.
They meet in the middle, creating the convergence zone exactly where the sandy connector now is. In time, this is the place where the sediments end up, fall to the bottom and start creating a sandy connector.

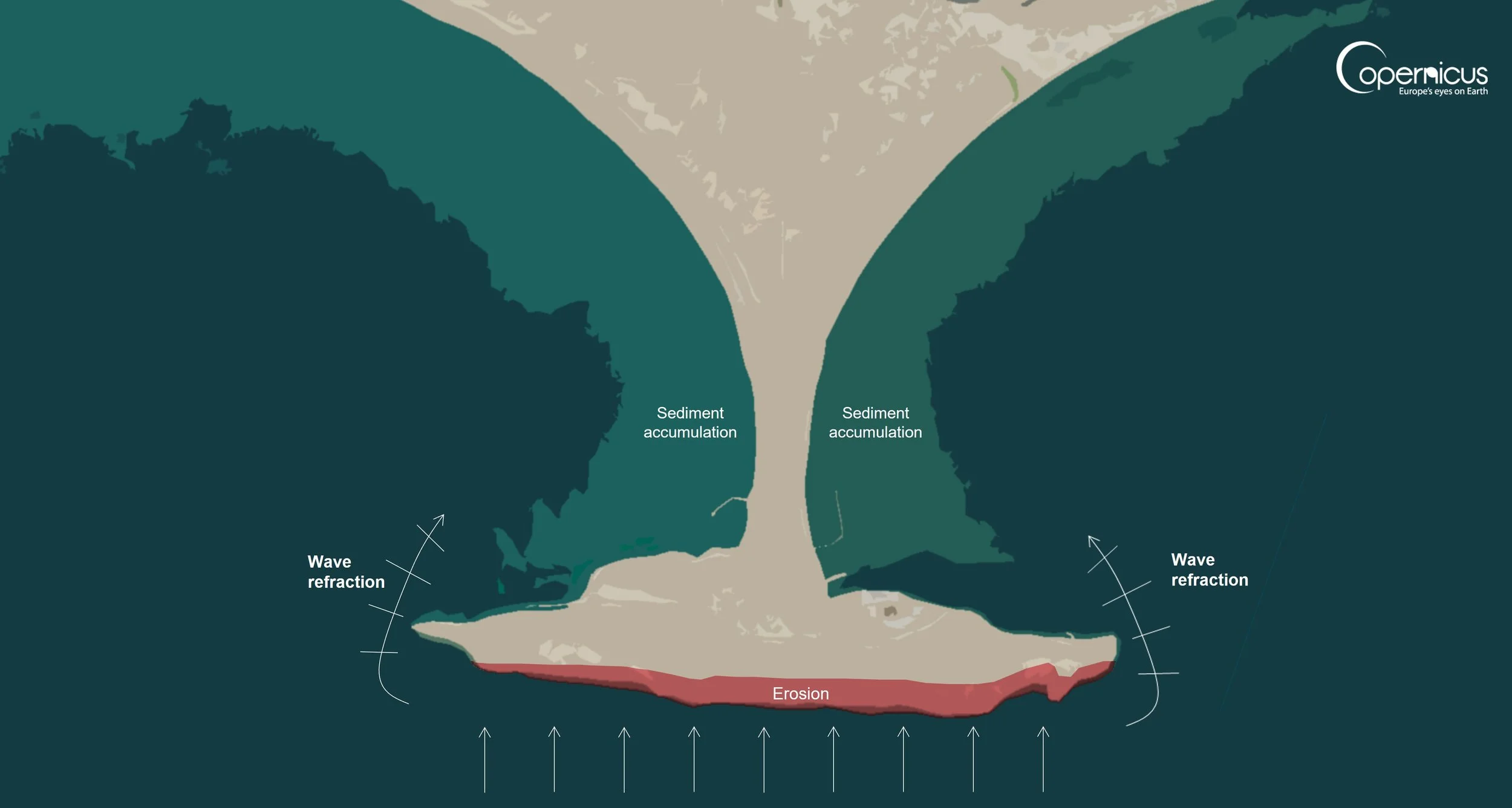

Simple illustration of the formation by converting Copernicus-Sentinel imagery into a graded colour scheme.
Conclusion: Why this matters
This started as a simple “I wonder if this feature can be explained from orbit” and wasn’t sure if it would result in a robust explanation.
But armed with a basic understanding of geological formation mechanisms, orbital view quickly eliminated common formation culprits and revealed a quite sophisticated wave refraction as the key force at play.
The consistently appearing sediments and waves in the satellite images weren’t just occasional coastal conditions, but the actual formation mechanic in plain sight.
See you,
Orbital Vantage
